Laptop Battery Fit Guide: Identify Connectors & Dimensions Fast

Buying a laptop battery is more than just matching a brand name. Modern laptops are engineered with incredibly tight tolerances. A battery that looks "mostly right" can lead to catastrophic hardware failure. It might even cause permanent damage to your motherboard's charging circuit.

Most users begin their search by typing their laptop model into a search engine. While logical, this strategy is surprisingly risky. Manufacturers often use different internal suppliers for the same laptop model. This means two identical-looking laptops might house entirely different battery shapes.

To shop effectively, you must adopt a "parts-first" mindset. This involves opening your device to inspect the original hardware. Relying on software readings or stickers on the outer case is often insufficient. Real-world data shows that physical verification reduces return rates by over 60%.

In this guide, we focus on the two most critical physical factors. These are the connector type and the physical dimensions. We will use industry-standard terminology to help you navigate technical listings. You will learn to identify the subtle differences in "blade" versus "cable" connectors.

Precision ensures your device remains portable and safe. A poorly fitted battery can put pressure on the screen or trackpad. By following this buying guide, you protect your investment and extend your laptop's life. Let's start by looking at the most complex part: the connector.

The Connector Deep Dive: Identifying Pins and Pitch

The connector is the bridge between your battery's stored energy and the motherboard. It is the most common point of failure in the buying process. A slight misalignment in pin count or spacing makes the battery unusable. You must identify whether your battery uses a fixed-mount or a cable-tethered connector.

Fixed-mount connectors are built directly into the battery's plastic housing. They usually feature several gold-plated "blades" or slots. You must count these slots carefully. Most modern ultrabooks use 6 to 10 pins. These pins handle power delivery, ground, and data communication via the SMBus protocol.

Cable-tethered batteries use a flexible wire harness. For these, the connector shape is vital. Manufacturers like Dell and HP often use similar-looking "plugs," but the "pitch" (the distance between the center of each pin) differs. Standard pitches are often 1.0mm, 1.25mm, or 1.5mm.

Connector Identification Checklist

• Pin Count: Count the physical gold teeth or holes in the plug.
• Gender: Determine if the battery side is male (pins) or female (slots).
• Keying: Look for small plastic notches that prevent "upside-down" insertion.
• Wire Order: For cabled versions, note the color sequence of the wires.

Misidentifying the connector is the leading cause of "Battery Not Detected" errors. Even if the battery fits the slot, a data pin mismatch prevents charging. Always compare your original connector's photos with the seller’s listing. If the pin count differs by even one, do not buy it.

Size and Fit: Measuring Dimensions for Your Chassis

In the world of modern laptop design, space is at a premium. Engineers design internal components to fit like a jigsaw puzzle. A battery that is even 2mm too thick can cause the laptop casing to bulge. This pressure can crack the motherboard or damage the delicate LCD screen.

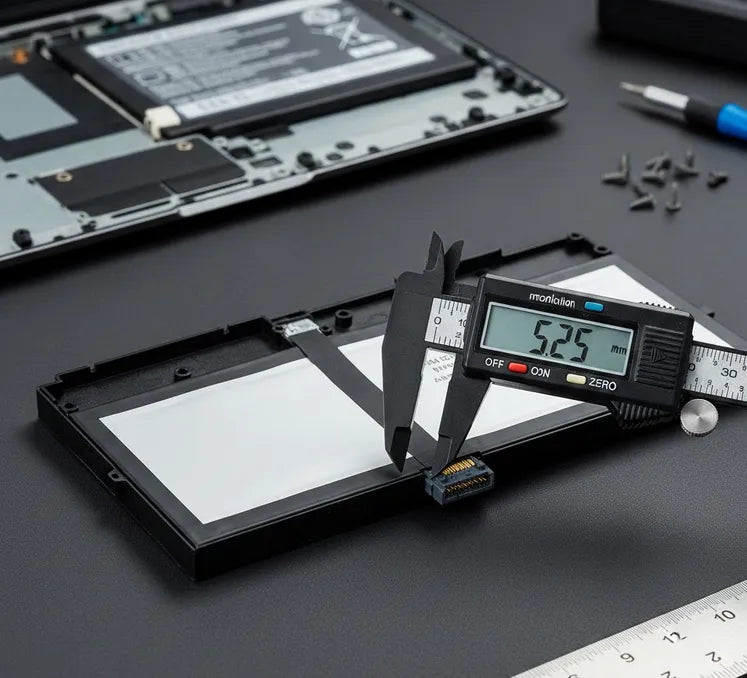

To ensure a perfect fit, you must measure your original battery with precision. Do not rely on "standard" sizes, as there are none in the laptop industry. Use a metric ruler or digital calipers for the most accurate results. Always measure the length, width, and thickness at the bulkiest points.

The Three Golden Metrics

• Length: Measure the longest side, including any screw "ears" or mounting tabs.
• Width: Ensure you measure the main body of the battery housing.
• Thickness: This is the most critical measurement for internal batteries. Even a slight "swell" in an old battery can skew this number.

Most internal batteries are now "Lithium Polymer" (Li-Po) pouches. These are thin, flat, and often strangely shaped to fill empty gaps in the chassis. If your laptop uses a "Lithium-Ion" (Li-ion) cylindrical cell pack, it will be significantly thicker. These usually clip into the back of the laptop rather than sitting under the palm rest.
Understanding Mounting Tab Placement

Physical dimensions are only half the battle. You must also verify the location of the screw holes. Look at the perimeter of your battery. Are there plastic tabs with holes for screws? Note their exact positions. A battery with the correct dimensions but shifted mounting tabs will not sit securely.

If you are buying an "extended capacity" battery, be cautious. These often have a physical bump that protrudes from the bottom of the laptop. This changes the angle of your typing surface and might not fit in your existing carrying case. Always check the "Z-height" listed in the product description before clicking buy.

The Compatibility Checklist: Voltage, Capacity

Once the physical fit is confirmed, you must verify the electrical specifications. Installing a battery with the wrong voltage can permanently fry your motherboard. Conversely, using a battery with incorrect capacity might lead to "Ghost shutdowns." This is where the battery reports 20% power but the laptop dies instantly.
Voltage (V): The Non-Negotiable Number

You will usually find the voltage printed clearly on the battery label. Common laptop voltages include 7.4V, 11.1V, and 14.8V. These numbers represent the series configuration of the internal cells. You must match the voltage of your original battery exactly. A 14.8V battery cannot be replaced by an 11.1V model, even if they look identical.
Capacity (mAh or Wh): The Fuel Tank

Capacity is measured in Milliamp-hours (mAh) or Watt-hours (Wh). Unlike voltage, this number can vary. A higher mAh rating simply means the battery will last longer between charges. Think of it as a larger fuel tank for your car. As long as the voltage and dimensions match, a higher capacity is a beneficial upgrade.

In the world of online shopping, Expertise, Authoritativeness, and Trustworthiness (E-A-T) are vital. Avoid sellers who provide vague descriptions or blurry photos of the connectors. A trustworthy seller will provide:

• Clear Part Numbers: Look for "Replace Part No." lists (e.g., A1466, L15C4P22).
• Safety Certifications: Ensure the battery has CE, FCC, and RoHS markings.
• Freshness Date: Lithium cells degrade on the shelf. High-quality vendors list the manufacture date.

How to Cross-Reference Part Numbers

The most reliable way to buy is by the Manufacturer Part Number (MPN). This is a unique string of letters and numbers found on the battery itself. For example, a Lenovo battery might be labeled "45N1147." Searching by this specific code is 99% more accurate than searching by the laptop model name.

Check for the "Wh" rating specifically. If your original is 50Wh and the replacement is 30Wh, your laptop will feel significantly less "portable." Always aim for a rating equal to or higher than your original factory battery.

Conclusion: Ensuring a Perfect Fit

Finding the right battery is a journey of technical due diligence. By now, you understand that a laptop model name is just the starting point. The real secret to a successful purchase lies in the physical and electrical "fingerprint" of the battery itself.

Before you finalize your order, perform a final side-by-side comparison. Place your old battery next to the listing photos on your screen. Verify the connector orientation, the screw hole alignment, and the voltage rating. If any detail feels "off," it is better to ask the seller for clarification than to risk a return.

Buying a high-quality replacement is an investment in your device's longevity. A well-chosen battery doesn't just provide power; it restores the freedom of portability. It prevents the frustration of being tethered to a wall outlet or losing work during a sudden power cut.
Final Purchase Checklist

• Physical Match: Does the connector pin count and shape match exactly?
• Size Confirmation: Are the length, width, and thickness within 1mm of the original?
• Voltage Sync: Is the voltage (e.g., 11.4V) identical to your factory unit?
• Seller Trust: Does the vendor offer a warranty and clear safety certifications?

Once your new battery arrives, remember to calibrate it. Charge it to 100%, then let it drain to about 5% before charging it back up. This helps the laptop's power management system "learn" the new capacity. With these steps, your laptop will feel brand new again.
